memtrace insight-card

Print the Codebase Insight Card on demand — a compact per-repo summary of the hottest symbol, likely dead code, and the most critical bridge symbol, straight from the knowledge graph.

Usage#

memtrace insight-card [repoId]

memtrace insight-card prints the Codebase Insight Card on demand — a compact summary of what Memtrace's graph algorithms found in a repo. With no argument it renders one card per indexed repository; with a repoId it renders just that repo.

You've likely already seen this card once: memtrace start prints it automatically after a repo's first index. This command bypasses the stamp that suppresses that repeat printing, so you can pull the card up again whenever you want it.

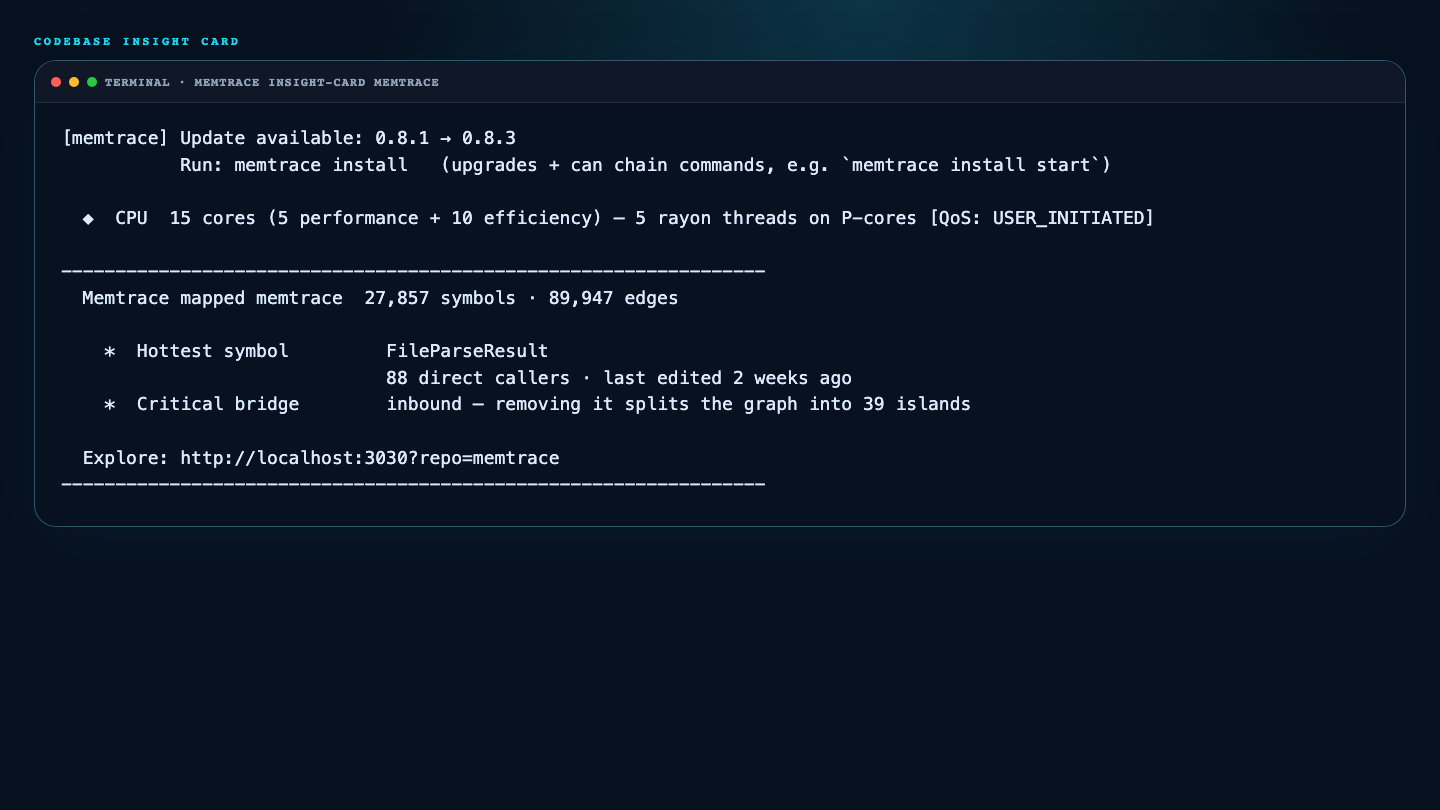

Terminal running memtrace insight-card with a rendered Codebase Insight Card, hottest symbol, likely dead code, critical bridge symbol, and dashboard link. — Insight card in a terminal

Card contents#

Each card assembles up to three facts straight from graph algorithms run against MemDB:

Hottest symbol — the most-called symbol (via bridge/centrality search), plus its last-edited date from a git log lookup on its file.
Likely dead code — a zero-caller function/method count. This line is suppressed when the dead ratio is under 5% of live functions and methods, so the card doesn't nag on a healthy repo.
Critical bridge symbol — the top result from bridge-symbol detection, with up to 3 dependent community names attached for context.

If all three structural slots come back empty, the card falls back to a "Modules detected" line instead (up to 3 community names). If even that's empty, the repo gets no card at all — just a dim "not enough graph data yet" line telling you to run memtrace start to bootstrap it.

NO TIER GATING

Insight cards carry no license or entitlement check — the command works the same on every plan.

Multiple repos and the cap#

With no repoId, cards are sorted by node count descending and capped at 5. Anything past the top 5 collapses into a single "… and N more — run memtrace insight-card <repo_id> to see them" hint line instead of being rendered in full.

Passing an unknown repoId isn't rejected outright — path lookup falls back to the current working directory, and you'll typically just get the "not enough graph data yet" line rather than a hard error.

Environment variables#

Variable	Default	Description
`NO_COLOR`	—	Any non-empty value forces plain-ASCII output (dashes, `*` bullets, no ANSI escapes). Otherwise color and Unicode are used when stderr is a TTY, plain text otherwise.
`MEMTRACE_UI_PORT`	`3030`	Port used in the card's footer link, `Explore: http://localhost:<port>?repo=<repoId>`. The command doesn't start the UI itself — the link just assumes it's running there.
`MEMTRACE_MEMDB_MODE`	`local`	How the command reaches MemDB: `embedded` \| `local` (sidecar, the default) \| `external`. In local mode a memcore-server sidecar is spawned or adopted if this process ends up as the workspace runtime owner.
`MEMTRACE_MEMDB_ENDPOINT`	`http://127.0.0.1:50051`	MemDB gRPC endpoint the command connects to. If unreachable, it prints "Cannot reach MemDB at <endpoint>" and still exits 0.
`MEMTRACE_LOG_LEVEL / RUST_LOG`	—	The command initializes logging with the Quiet profile by default (only warnings/errors surface); either variable overrides the filter.

Gotchas#

OUTPUT GOES TO STDERR, NOT STDOUT

memtrace insight-card > file captures nothing — cards print via stderr. Redirect stderr instead: memtrace insight-card 2> card.txt.

EXIT CODE IS ALWAYS 0

Unreachable MemDB, zero indexed repos, an unknown repoId, and empty cards all still exit 0. Scripts must parse the stderr text, not the exit code.

BYPASSES THE (REPO_ID, HEAD_SHA) STAMP

The automatic first-index card is suppressed on repeat runs by an insight_card_shown stamp keyed on (repo_id, HEAD_sha) plus a fact fingerprint. This command bypasses that stamp in both directions: it never checks it before rendering, so it always prints — and it never writes it, so running it doesn't suppress the next automatic card either.

A no-argument run considers every indexed repo, then renders the top 5 by node count with an "... and N more" hint when more repos are present. Git metadata is best-effort: non-git directories render the HEAD sha and last-edit fields as "unknown."

Examples#

terminal

$ memtrace insight-card
# One card per indexed repo, largest (by symbol count) first,
# capped at 5 with an '... and N more' hint.

$ memtrace insight-card my-repo-id
# Card for a single repo. Get repo ids from the no-arg run.

$ NO_COLOR=1 memtrace insight-card 2> card.txt
# Cards go to stderr; NO_COLOR (or any non-TTY stderr) switches
# to plain ASCII, so this captures a clean text card.

See also memtrace start, memtrace index, and Quality.
